KZ AM01 USB DAC AMP CX31993 MAX97220 USB C Dongle Adapter

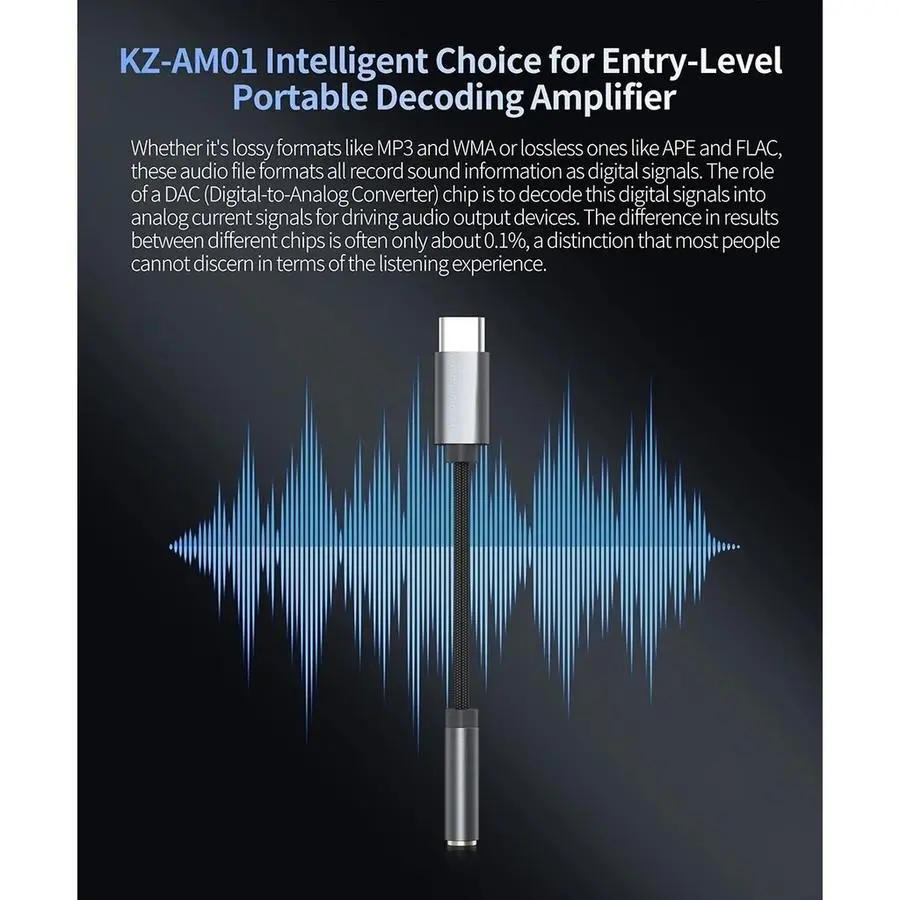

KZ AM01 Intelligent Choice for Entry-Level

KZ's First Portable Decoding Amplifier

Portable Decoding Amplifier

Whether it's lossy formats like MP3 and WMA or lossless ones like APE and FLAC, these audio file formats all record sound information as digital signals. The role of a DAC (Digital-to-Analog Converter) chip is to decode these digital signals into analog current signals for driving audio output devices. The difference in results between different chips is often only about 0.1%, a distinction that most people cannot discern regarding the listening experience.

Independent DAC decoding chip

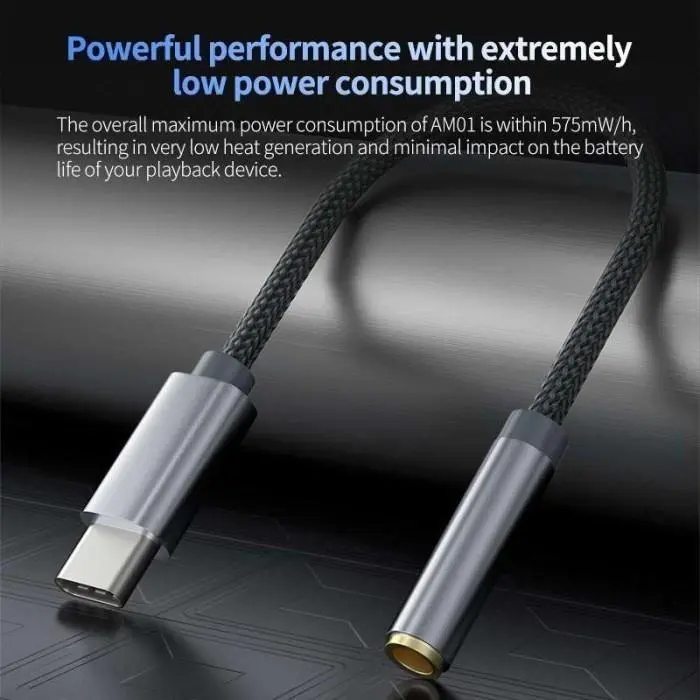

The highperformance DAC decoding chip built into the KZ AM01 uses the latest manufacturing process, with standby power consumption as low as 10mW/h. (Most decoding chips on the market have an outdated manufacturing process, and even with no load, they have a high power consumption of 40-50mW/h.) This chip provides KZ AM01 with an impressive signal-to-noise ratio of up to 124dB and a dynamic range of 111dB, ensuring a precise one-to-one conversion of digital signals into pure lossless audio quality.

Compatible with most playback devices on the market

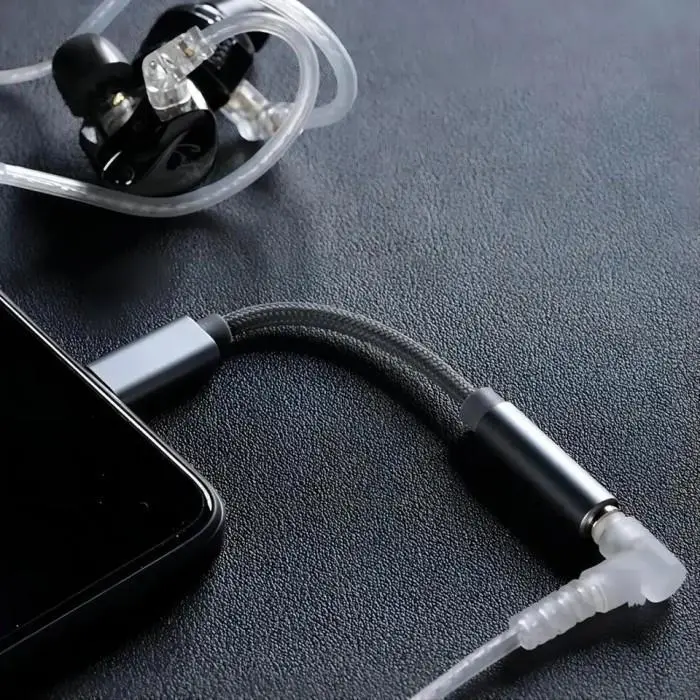

KZ AM01 is plug-and-play compatible with various Type-C devices, eliminating the need for complex configurations.

Note: It only supports TYPE-C interfaces with OTG functionality.

Model: KZ AM01

SNR: 110dB

DNR: 110dB

THD+N: -95dB

Frequency Response: 20-20000Hz

Impedance Range: ≥16Ω

Output power: 1Vrms (30mW@32Ω)

Input: USB Type-C

Output: 3.5mm

Cable Length: 110±10mm

Decoding capability:

- DAC: Up to 384kHz/32bit

- -ADC: Up to 96kHz/24bit
